GUK Series nylock nut
Bearing lock nut ,also named nylon insert self locking nuts ,or nylock nuts ,with a nylon collar ,is the mainstay of the precision self-locking nuts .It is designed for the same shaft dimensions as the N and AN nuts ,But with the added features of self-locking and super precision wherein it has become a most important component for precision bearing and power transmission assemblies .
Remark:
needs good locking effect ,but flexiabile ,
Our bearing lock nut advantage :
1,Every of bearing lock nut thread precison arrive 6h
2,Every lock Nut can work more than 10 times repleately
3,Every lock nut hardness could meet standard requirement ,
4.Vertical face run out <0.2

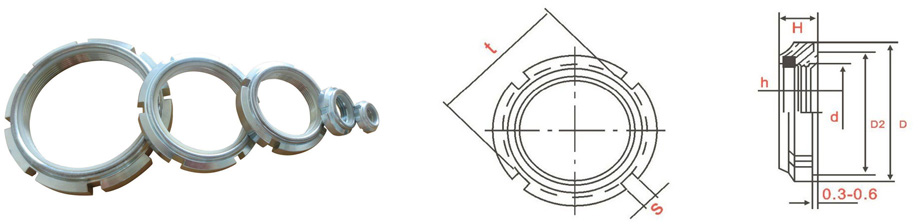

Part No. | Thrcad*pitch | H/mm | h/mm | D/mm | D2/mm | t/mm | S/mm | No.of grooves for hook | kg |
WT-GUK10 | M10*0.75 | 7.4 | 4.5 | 18 | 15 | 15 | 3 | 4 | 0.009 |
WT-GUK12 | M12*1.0 | 7.4 | 4.5 | 21 | 18 | 18 | 3 | 4 | 0.009 |
WT-GUK15 | M15*1.0 | 8.4 | 5.5 | 24 | 21 | 21 | 4 | 4 | 0.012 |
WT-GUK17 | M17*1.0 | 8.4 | 5.5 | 28 | 24 | 24 | 4 | 4 | 0.018 |
WT-GUK20 | M20*1.0 | 9.4 | 6.5 | 32 | 27 | 27 | 4 | 4 | 0.025 |
WT-GUK25 | M25*1.5 | 10.3 | 6.5 | 38 | 33 | 33 | 5 | 4 | 0.035 |
WT-GUK30 | M30*1.5 | 10.9 | 6.5 | 44 | 38 | 38 | 5 | 4 | 0.046 |
WT-GUK35 | M35*1.5 | 11.1 | 7.0 | 50 | 44 | 44 | 5 | 4 | 0.062 |
WT-GUK40 | M40*1.5 | 12.1 | 8.2 | 56 | 50 | 50 | 6 | 4 | 0.080 |
WT-GUK45 | M45*1.5 | 12.1 | 8.2 | 62 | 55 | 55 | 6 | 4 | 0.095 |
WT-GUK50 | M50*1.5 | 12.7 | 8.5 | 68 | 61 | 61 | 6 | 4 | 0.130 |
WT-GUK55 | M55*2.0 | 13.2 | 8.5 | 75 | 68 | 68 | 7 | 6 | 0.160 |
WT-GUK60 | M60*2.0 | 13.2 | 8.5 | 80 | 73 | 73 | 7 | 6 | 0.170 |
WT-GUK65 | M65*2.0 | 14.3 | 9.5 | 85 | 77 | 77 | 7 | 6 | 0.185 |
WT-GUK70 | M70*2.0 | 14.3 | 9.5 | 92 | 84 | 84 | 8 | 6 | 0.23 |
WT-GUK75 | M75*2.0 | 15.3 | 10.5 | 98 | 89 | 89 | 8 | 6 | 0.27 |
WT-GUK80 | M80*2.0 | 16.3 | 11.5 | 105 | 96 | 96 | 8 | 8 | 0.34 |
WT-GUK85 | M85*2.0 | 17.3 | 12.5 | 110 | 100 | 100 | 8 | 8 | 0.39 |
WT-GUK90 | M90*2.0 | 17.5 | 12.5 | 120 | 110 | 110 | 10 | 8 | 0.54 |
WT-GUK95 | M95*2.0 | 18.5 | 13.5 | 125 | 115 | 115 | 10 | 8 | 0.6 |
WT-GUK100 | M100*2.0 | 19.5 | 14.5 | 130 | 120 | 120 | 10 | 8 | 0.68 |
Remark:
1,No need to add a toothed lock washer
2,Do not need to re-keyway, saving assembly time
3,Can be allowed to re-lock the use of unloading
4,Can withstand vibration, not locked to ensure complete resistance
5,Surface galvanized to prevent rust.

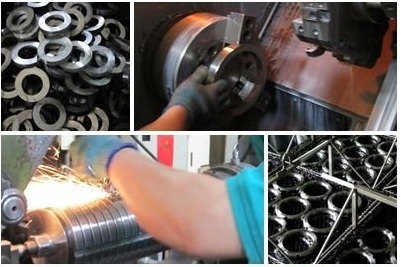

Workshop:
